Executive Pump 3HP USMotor 230v 2-Spd 56fr 2-1/2" x 2" 3721221-13HZN

Description

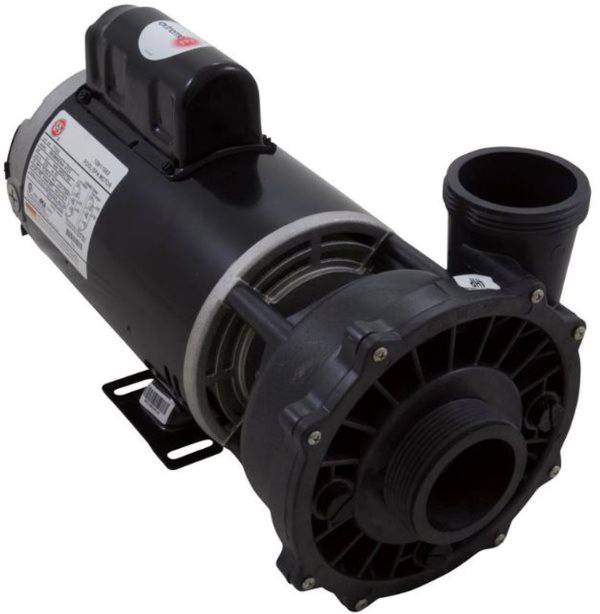

Waterway Executive Pump 3HP USMotor 230v 2-Spd 56fr 2-1/2″ 2″ 3721221-13HZN is a 2-speed, 56 frame 3HP spa pump.

Motor Voltage	230v
Speed	2 Speed (2-Spd)
Motor Amperage/Wattage	10.0A/3.5A
Horsepower	3.0hp
Manufacturer	Waterway
Pump Model	Executive
Suction Pipe Size	2-1/2″
Suction Connection Type	Male Buttress Thread (mbt)
Suction Style	Center
Discharge Pipe Size	2″
Discharge Connection Type	Male Buttress Thread (mbt)
Discharge Style	Side
Motor Frame	56 Frame Thru-Bolt
Drain Plug Location	3,6,9 o`clock

The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life.

The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2″ diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.

Spa Pump Features: Executive wet end designed specifically for 56-frame motors. 56-frame motor for added strength, cooler operating temperature, and longer motor life. Large 6-1/2″ diameter wet end for higher head pressure. 2″ intake for improved flow performance and reduced noise.

Wet end can be rotated for easy installation. Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life.Two speed motors have four sets of insulated windings for increased efficiency.

Dimensions (H W L): 9.08″ 8.05″ 14.775″.
